Entwodiksyon jeneral

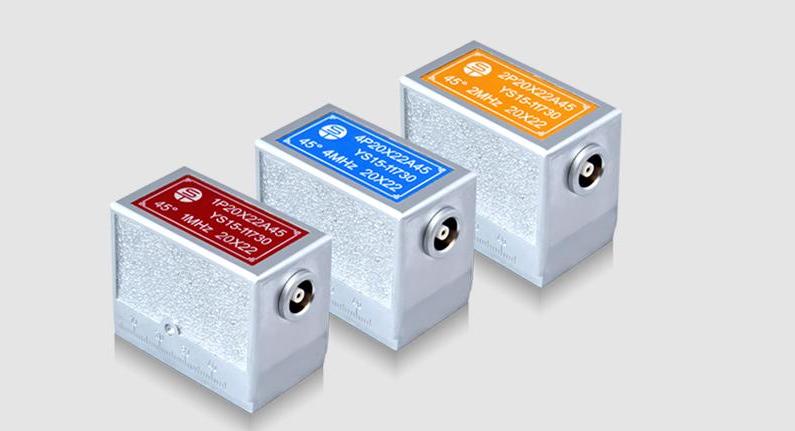

YUSHI Tranverse Wave Angle Beam Probe lajman itilize pou deteksyon defo oswa enspeksyon soude, tankou fant, twou ak porositë .. Lè sa a, vag transvèsal la reflete pa defo yo nan objè tès la. Konpare ak onn longitudinal, onn taye yo gen pi ba atenuasyon ak longèdonn ki pi kout, sa ki fè yo kapab detekte pi piti defo.YUSHI ka bay kliyan divès kalite sond frekans transverse ak sèvis OEM.
Fonksyònman Prensip
Ond taye ankèt oblik la se yon deteksyon vag transverse, ki se yon pwofonde ki gen yon ang ensidan ant premye ang kritik la ak dezyèm ang kritik la ak vag refraksyon an se yon vag taye pi bon kalite, ki se sitou itilize yo detekte domaj pèpandikilè ak deteksyon an. sifas oswa nan yon ang sèten, epi li se lajman ki itilize nan deteksyon an soude, tiyo ak forgings.
Poukisa YUSHI Tranverse Wave Probe a pi sansib?
● Adopte wafers piezoelectric ki fèt ak materyèl konpoze

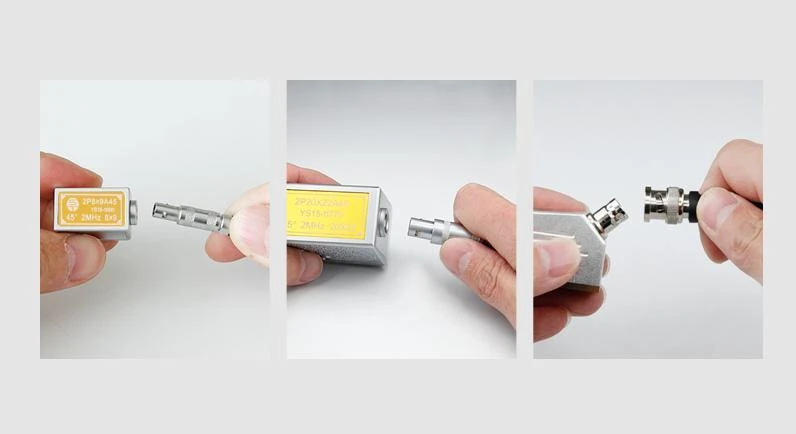

● Chwazi konektè
● Pwosesis oksidasyon anodik sifas yo

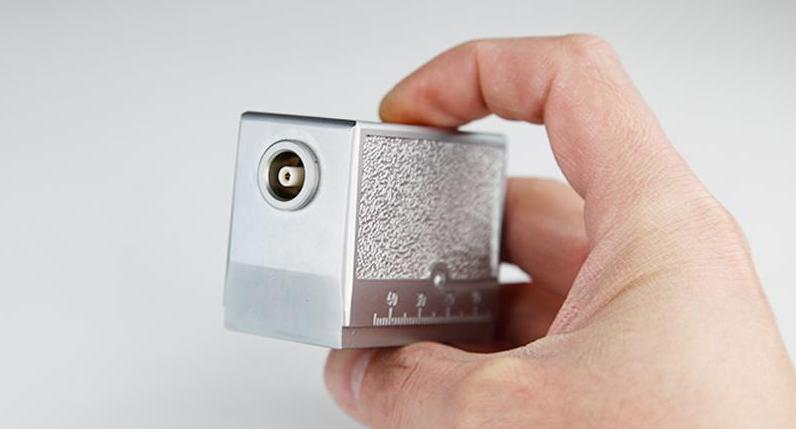

�% 97� PMMA-Wearable Probe Wedge
Aplikasyon an nan Tranverse Wave Probe

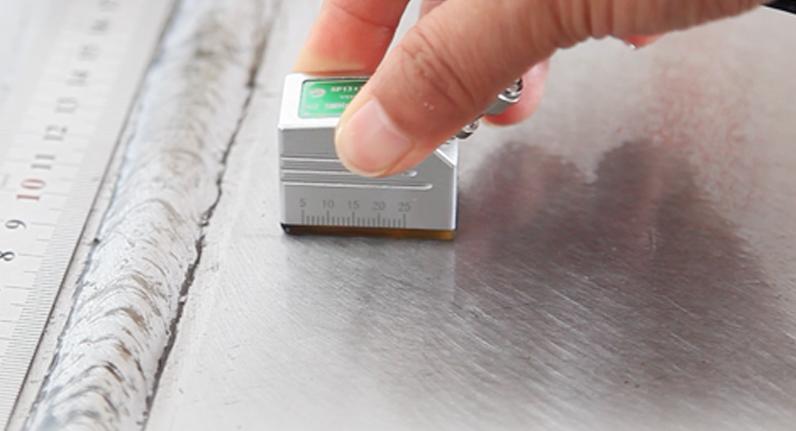

Jeneral soude fant Enspeksyon
Pipeline, veso presyon
Aks, Distribisyon, Forge
Wou tren ak ray
Ponp, manch valv
Lam turbine
Spesifikasyon sond
|
Modèl |
Frekans |
Gwosè eleman |
Ang refraksyon |
Toupre longè jaden |
||
|
MHz |
misye |
Nan. |
Asye |
manm |
nan |
|
|
2.5P13x13K1 |
2.5 |
13x13 |
.51x.51 |
45 degre |
44 |
1.7 |
|
2.5P13x13K1.5 |
2.5 |
13x13 |
.51x.51 |
56.3 degre |
44 |
1.7 |
|
2.5P13x13K2 |
2.5 |
13x13 |
.51x.51 |
63.4 degre |
44 |
1.7 |
|
2.5P13x13K2.5 |
2.5 |
13x13 |
.51x.51 |
68.2 degre |
44 |
1.7 |
|
2.5P13x13K3 |
2.5 |
13x13 |
.51x.51 |
71.6 degre |
44 |
1.7 |
|
5P13x13K1 |
5 |
13x13 |
.51x.51 |
45 degre |
88 |
3.5 |
|
5P13x13K1.5 |
5 |
13x13 |
.51x.51 |
56.3 degre |
88 |
3.5 |
|
5P13x13K2 |
5 |
13x13 |
.51x.51 |
63.4 degre |
88 |
3.5 |
|
5P13x13K2.5 |
5 |
13x13 |
.51x.51 |
68.2 degre |
88 |
3.5 |
|
5P13x13K3 |
5 |
13x13 |
.51x.51 |
71.6 degre |
88 |
3.5 |
|
2.5P10x16K1 |
2.5 |
10x16 |
.39x.63 |
45 degre |
42 |
1.7 |
|
2.5P10x16K1.5 |
2.5 |
10x16 |
.39x.63 |
56.3 degre |
42 |
1.7 |
|
2.5P10x16K2 |
2.5 |
10x16 |
.39x.63 |
63.4 degre |
42 |
1.7 |
|
2.5P10x16K2.5 |
2.5 |
10x16 |
.39x.63 |
68.2 degre |
42 |
1.7 |
|
2.5P10x16K3 |
2.5 |
10x16 |
.39x.63 |
71.6 degre |
42 |
1.7 |
|
5P10x16K1 |
5 |
10x16 |
.39x.63 |
45 degre |
84 |
3.3 |
|
5P10x16K1.5 |
5 |
10x16 |
.39x.63 |
56.3 degre |
84 |
3.3 |
|
5P10x16K2 |
5 |
10x16 |
.39x.63 |
63.4 degre |
84 |
3.3 |
|
5P10x16K2.5 |
5 |
10x16 |
.39x.63 |
68.2 degre |
84 |
3.3 |
|
5P10x16K3 |
5 |
10x16 |
.39x.63 |
71.6 degre |
84 |
3.3 |
|
2.5P9x9K1 |
2.5 |
9x9 |
.35x.35 |
45 degre |
21 |
0.8 |
|
2.5P9x9K1.5 |
2.5 |
9x9 |
.35x.35 |
56.3 degre |
21 |
0.8 |
|
2.5P9x9K2 |
2.5 |
9x9 |
.35x.35 |
63.4 degre |
21 |
0.8 |
|
2.5P9x9K2.5 |
2.5 |
9x9 |
.35x.35 |
68.2 degre |
21 |
0.8 |
|
2.5P9x9K3 |
2.5 |
9x9 |
.35x.35 |
71.6 degre |
21 |
0.8 |
|
5P9x9K1 |
5 |
9x9 |
.35x.35 |
45 degre |
42 |
1.7 |
|
5P9x9K1.5 |
5 |
9x9 |
.35x.35 |
56.3 degre |
42 |
1.7 |
|
5P9x9K2 |
5 |
9x9 |
.35x.35 |
63.4 degre |
42 |
1.7 |
|
5P9x9K2.5 |
5 |
9x9 |
.35x.35 |
68.2 degre |
42 |
1.7 |
|
5P9x9K3 |
5 |
9x9 |
.35x.35 |
71.6 degre |
42 |
1.7 |
|
2.5P8x12K1 |
2.5 |
8x12 |
.31x.47 |
45 degre |
25 |
1.0 |
|
2.5P8x12K1.5 |
2.5 |
8x12 |
.31x.47 |
56.3 degre |
25 |
1.0 |
|
2.5P8x12K2 |
2.5 |
8x12 |
.31x.47 |
63.4 degre |
25 |
1.0 |
|
2.5P8x12K2.5 |
2.5 |
8x12 |
.31x.47 |
68.2 degre |
25 |
1.0 |
|
2.5P8x12K3 |
2.5 |
8x12 |
.31x.47 |
71.6 degre |
25 |
1.0 |
|
5P8x12K1 |
5 |
8x12 |
.31x.47 |
45 degre |
50 |
2.0 |
|
5P8x12K1.5 |
5 |
8x12 |
.31x.47 |
56.3 degre |
50 |
2.0 |
|
5P8x12K2 |
5 |
8x12 |
.31x.47 |
63.4 degre |
50 |
2.0 |
|
5P8x12K2.5 |
5 |
8x12 |
.31x.47 |
68.2 degre |
50 |
2.0 |
|
5P8x12K3 |
5 |
8x12 |
.31x.47 |
71.6 degre |
50 |
2.0 |
